Human Blood
|
|
|
|
| |
|
|
|
|
| |
-
The molar extinction coefficient of carboxyhemoglobin in
[cm-1/(mol/L)] (450 - 650nm) with a
resolution of 5nm:
download matlab file
Original data source:
O. Siggaard-Andersen, B. Norgaard-Pedersen, J. Rem. Hemoglobin
pigments spectrophotometric determination of oxy-, carboxy-, met-,
and sulfhemoglobin in capillary blood. Clinica Chimica Acta, 72(1),
85-100, 1972
|
|
|
| |
-
The molar extinction coefficient of methemoglobin in
[cm-1/(mol/L)] (450 - 700nm) with a resolution
of 5nm:
download matlab file
Original data source:
L. Randeberg, J. Bonesronning, M. Dalaker, J. Nelson, L. Svaasand,
Methemoglobin formation during laser induced photothermolysis of
vascular skin lesions. Lasers in Surgery and Medicine 34 (2004), 414-419.
|
|
|
| |
-
The molar extinction coefficient of sulfhemoglobin in
[cm-1/(mol/L)] (450 - 750nm) with a resolution of 5nm:
download matlab file
Original data source:
I. H. Yarynovska and A.I. Bilyi. Absorption spectra of sulfhemoglobin
derivatives of human blood. In G.L. Cote and A.V. Priezzhev, editors,
Optical Diagnostics and Sensing VI - SPIE, 6094:1-6, 2006.
|
|
|
| |
-

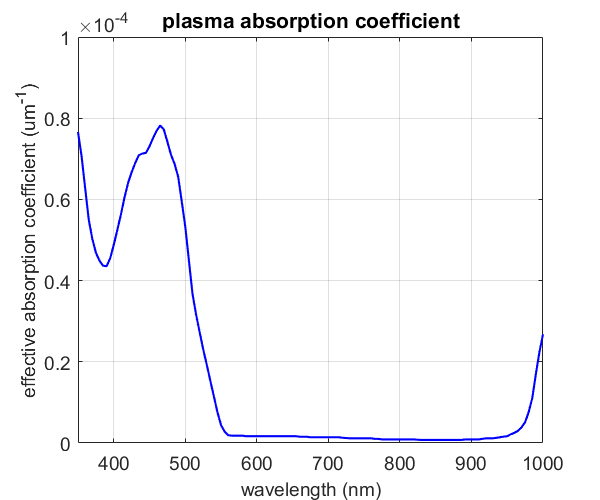

The effective absorption coefficient of plasma in [μm-1]
(350 - 1000nm) with a resolution of 5nm:
download matlab file
Original data source:
M. Meinke, G. Müller, M. Friebel, and J. Helfmann. Optical
properties of platelets and blood plasma and their inuence on the
optical behavior of whole blood in the visible to near infrared
wavelength range. J. Biomed. Opt., 12(1):014024-1-014024-9, 2007.
|
|
|
| |
-

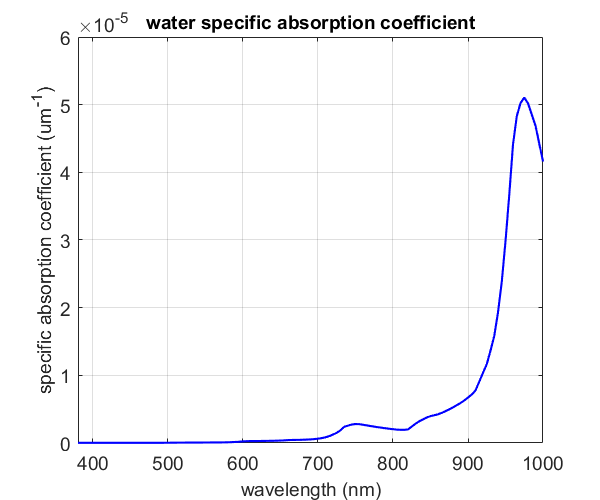

The specific absorption coefficient of water in [μm-1]
(380 - 1000nm) with a resolution of 5nm:
download matlab file
Original data source:
K.F. Palmer and D. Williams. Optical properties of water in the
near infrared. J. Opt. Soc. Am., 64:1107-1110, August 1974.
|
|
|
| |
-

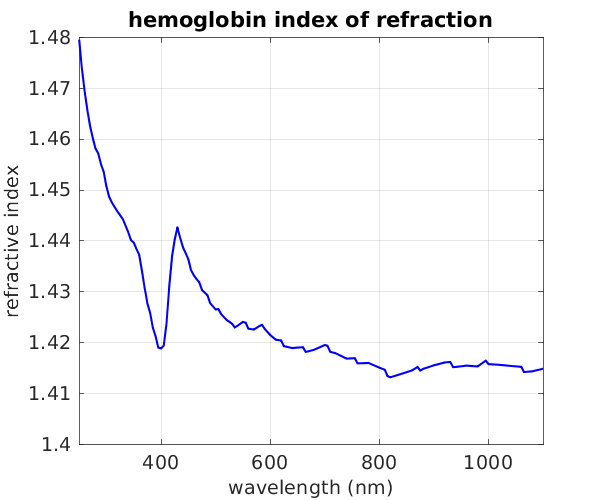

The refractive index of hemoglobin solution with concentration of
330g/L with a resolution of 5nm.
download matlab file
Original data source:
M. Friebel, M. Meinke. Model function to calculate the refractive
index of native hemoglobin in the wavelength range of 250-1100nm
dependent on concentration. J. Biomed. Opt. 11, 3 (2006),
034021-1-034021-10.
|
|
|
| |
-

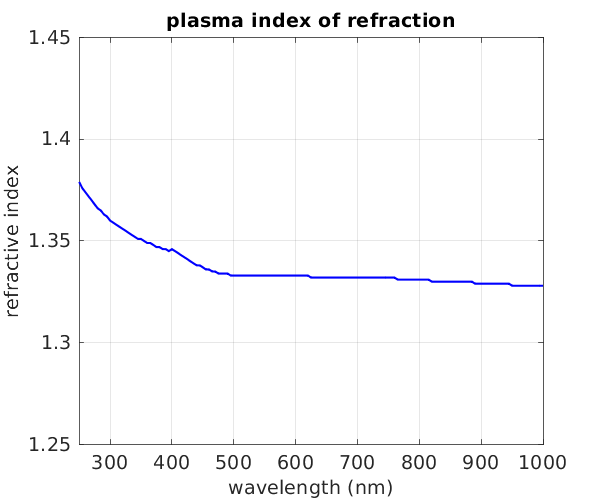

The refractive index of plasma, assuming 4.6g/dL of albumin, 2.6g/dL
of globulin, and 0.38g/dL of fibrinogen for 250-1000nm with a
resolution of 5nm.
download matlab file
Original data source:
Specific refraction increment of plasma proteins:
- G.S. Adair and M.E. Robinson. The specific refraction increments of
serum-albumin and serum-globulin. Biochem. J., 24(4):993-1011,
1930.
- J. Voros. The density and refractive index of adsorbing protein
layers. Biophysical Journal, 87:553-561, 2004.
|
|
|
| |
-

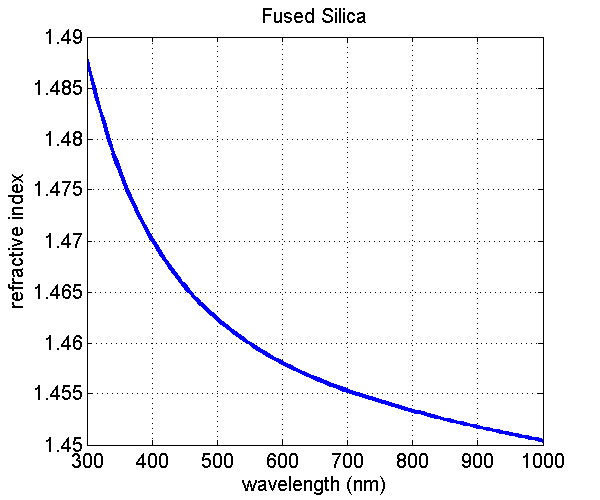

The refractive index (real part) of fused silica (300-1000nm). This is the material that we used for the
glass cuvette considered in our simulations involving light interactions with human blood.
download matlab file
Original data source:
W.J. Tropf and M.E. Thomas, "Properties of Crystals and Glasses" (Table 24, fused silica) in Handbook of
Optics (Volume IV: Optical Propertis of Materials, Nonlinear Optics, Quantum Optics), M. Bass, C.M.
DeCusatis, V. Lakshminarayanan, G. Li, C. MacDonald, V.N. Mahajan and E.V. Stryland, eds., pp. 2:1-93,
Optical Society of America, McGraw-Hill, Inc., (New York), 2010. Chapter 2.
|
|
|
| |
-

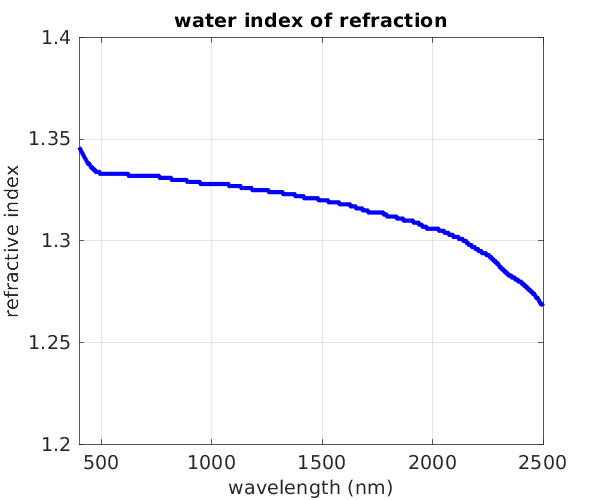

The refractive index of water:
download matlab file
Original data source:
K.F. Palmer and D. Williams. Optical properties of water in the
near infrared. J. Opt. Soc. Am., 64:1107-1110, August 1974.
|
|
|
| |
|
